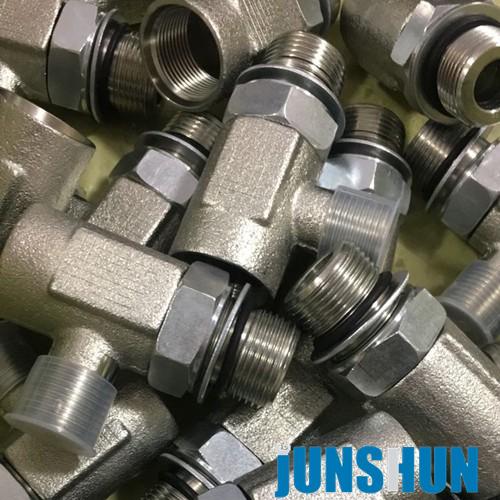

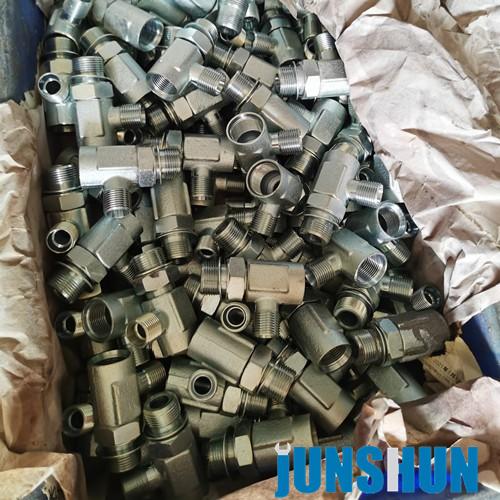

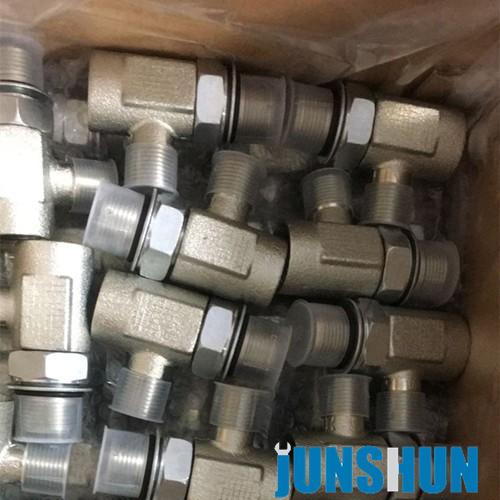

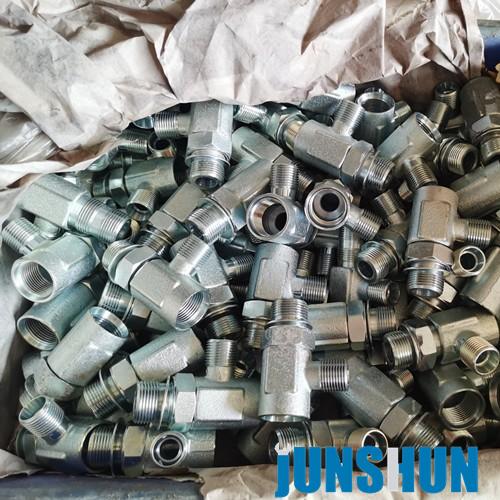

Adjustable Stud End Run TEE

  • Adjustable Screw-in side
  • CNC Turning
  • Casting
  • OEM
    • Adjustable Stud End Run TEE  , ISO 6149-2
    Inquiry Send Email

    Description

    Specifications
    PART NO.
    THREAD
    TUBE O.D.
    O-RING
    DIMENSIONS
    MPa
    E
    F
    I1,I2
    L1
    L2
    L3
    S1
    S2S3
    S4
    ACCH-12-12-10OG
    M12X1.5
    M10X1
    6
    O08.1X1.6
    13
    28
    26.5
    11
    14
    14
    31.5
    ACCH-14-14-12OG
    M14X1.5
    M12X1.5
    8
    O09.3X2.4
    15.5
    30.5
    32
    14
    17
    17
    ACCH-16-16-14OG
    M16X1.5
    M14X1.5
    10
    O11.3X2.4
    17.5
    32.5
    34
    16
    19
    19
    ACCH-18-18-16OG
    M18X1.5
    M16X1.5
    12
    O13.3X2.4
    19
    34
    36
    19
    22
    22
    ACCH-22-22-18OG
    M22X1.5
    M18X1.5
    15
    O15.3X2.4
    22
    37
    39.5
    22
    27
    24
    ACCH-26-26-22OG
    M26X1.5
    M22X1.5
    18
    O19.3X2.4
    25.5
    42
    43.5
    27
    32
    27
    ACCH-30-30-27OG
    M30X2
    M27X2
    22
    O23.5X3.0
    29.3
    45.8
    50
    30
    36
    32
    16
    ACCH-36-36-33OG
    M36X2
    M33X2
    28
    O29.5X3.0
    33.3
    49.8
    54
    36
    41
    41
    ADDH-14-14-12OG
    M14X1.5
    M12X1.5
    6
    O09.3X2.4
    17.5
    32.5
    32
    14
    17
    17
    63
    ADDH-16-16-14OG
    M16X1.5
    M14X1.5
    8
    O11.3X2.4
    18.7
    33.7
    34
    16
    19
    19
    ADDH-18-18-16OG
    M18X1.5
    M16X1.5
    10
    O13.3X2.4
    19.5
    36
    36
    19
    22
    22
    ADDH-20-20-18OG
    M20X1.5
    M18X1.5
    12
    O15.3X2.4
    19.5
    36
    37
    19
    24
    24
    ADDH-24-24-22OG
    M24X1.5
    M22X1.5
    16
    O19.3X2.4
    24
    42
    37.5
    24
    30
    27
    ADDH-30-30-27OG
    M30X2
    M27X2
    20
    O23.5X3.0
    28.3
    49.8
    50
    30
    36
    32
    40
    ADDH-36-36-33OG
    M36X2
    M33X2
    25
    O29.5X3.0
    32.8
    56.8
    54
    36
    46
    41
    ADDH-42-42-42OG
    M42X2
    M42X2
    30
    O38.5X3.0
    36.2
    62.7
    57.2
    41
    50
    50
